Quick Setup Nitrogen Air Separation Unit For Stainless Steel Brazing
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | KERONG GAS |
| گواهی: | ISO9001, CE, ASME |
| شماره مدل: | کنگره |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 کامپیوتر |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | جعبه چوبی |
| زمان تحویل: | 8 هفته |
| شرایط پرداخت: | L/C ، T/T ، Western Union ، MoneyGram |
| قابلیت ارائه: | 1000 قطعه در سال |
|
اطلاعات تکمیلی |
|||
| نام: | واحد جداسازی هوای نیتروژن | خلوص: | 90 ٪ 99 99.9999 ٪ |
|---|---|---|---|
| نقطه شبنم: | -45 ℃ یا بیشتر | مادی: | فولاد ضد زنگ یا فولاد کربن |
| ظرفیت: | 5NM3/HR ~ 5500NM3/HR | فشار: | قابل تنظیم |
| برجسته کردن: | PSA nitrogen gas generator for brazing,quick setup nitrogen air separation unit,stainless steel brazing nitrogen generator,quick setup nitrogen air separation unit,stainless steel brazing nitrogen generator |
||
توضیحات محصول
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

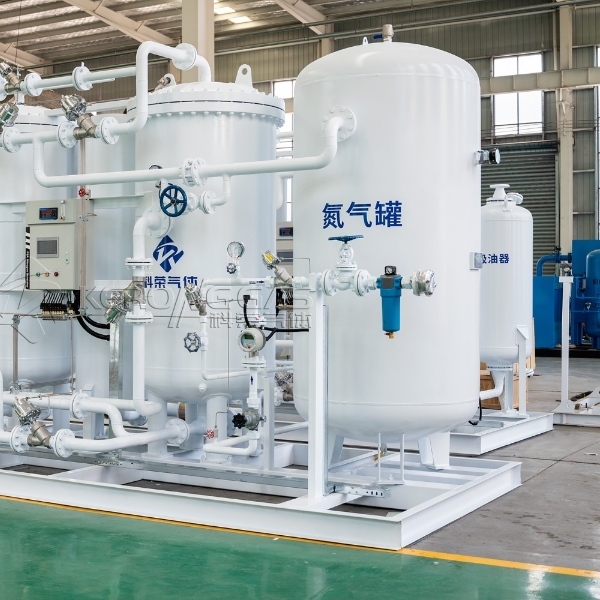

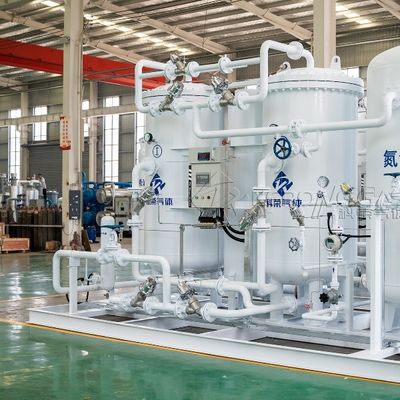

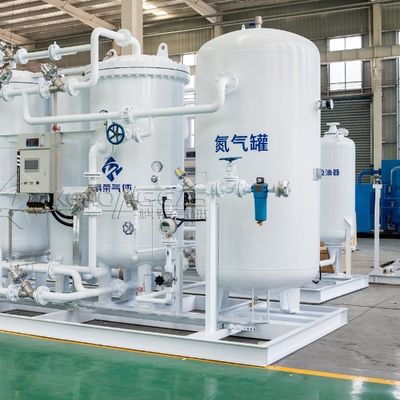

Our Quick Setup Nitrogen Air Separation Unit provides high-purity nitrogen (up to 99.99%) for stainless steel brazing, ensuring oxidation-free, precise joint formation. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it separates nitrogen from compressed air to deliver a continuous, reliable on-site supply. The skid-mounted, pre-assembled design allows rapid installation and setup, minimizing downtime and eliminating complex assembly. Equipped with automated controls, air drying, and filtration systems, it ensures stable pressure, consistent purity, and energy-efficient operation. Ideal for industrial stainless steel fabrication, this unit delivers dependable nitrogen supply, enhancing brazing quality and operational efficiency.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
