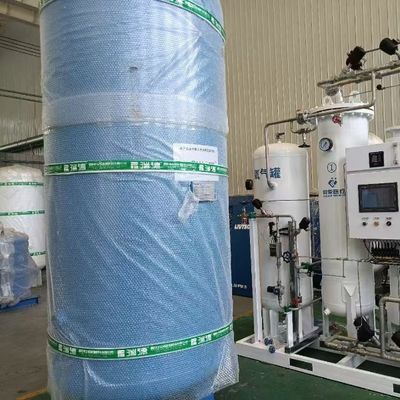

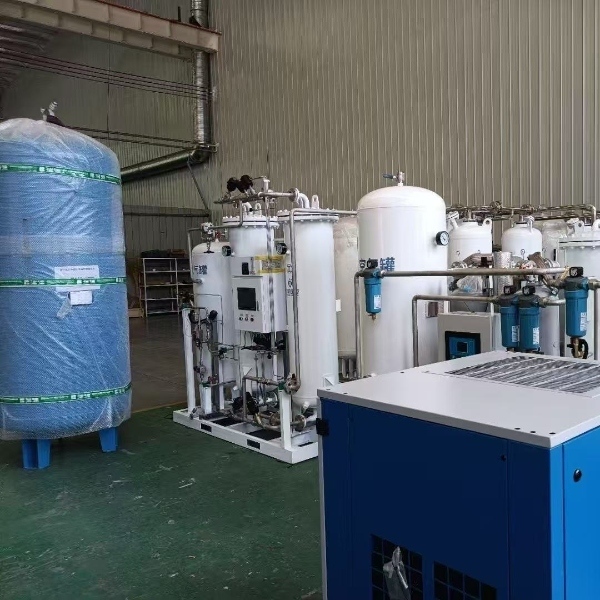

Zero Contamination Pressure Swing Adsorption Oxygen Plant With Sterilizer Filter
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | KERONG GAS |
| گواهی: | ISO13485，ISO9001 |
| شماره مدل: | KRO |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 عدد کامپیوتر |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | جعبه چوبی |
| زمان تحویل: | 8 هفته |
| شرایط پرداخت: | L/C، T/T، Western Union، MoneyGram |
| قابلیت ارائه: | 1000 قطعه در سال |
|
اطلاعات تکمیلی |
|||
| نام: | کارخانه اکسیژن جذب فشار سوئیچ | خلوص: | 90٪ ~ 99.5٪ |
|---|---|---|---|
| محتوای روغن: | بدون روغن، بدون چربی | مواد: | فولاد ضد زنگ یا فولاد کربن |
| ظرفیت: | 5Nm3/hr~60Nm3/hr | فشار: | قابل تنظیم |
| برجسته کردن: | PSA medical oxygen generator with sterilizer,sterilized oxygen plant for hospitals,contamination-free PSA oxygen system,sterilized oxygen plant for hospitals,contamination-free PSA oxygen system |
||
توضیحات محصول
Zero Contamination Pressure Swing Adsorption Oxygen Plant With Sterilizer Filter
Product description
Our Zero Contamination Pressure Swing Adsorption (PSA) Oxygen Plant with Sterilizer Filter is engineered to deliver clean, medical-grade oxygen with maximum safety and purity. Utilizing advanced PSA technology, the system produces oxygen at 93% ±3% purity with stable flow and pressure. Equipped with a high-efficiency sterilizer filter, it effectively removes bacteria, particulates, and contaminants, ensuring hygienic oxygen output suitable for hospitals and healthcare facilities. The fully automatic control system with real-time monitoring guarantees reliable and safe operation. Designed with durable components for long service life, this oxygen plant provides an energy-efficient, low-maintenance, and cost-effective on-site alternative to cylinders or liquid oxygen supply.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
